All data above are typical data for the membrane raw material, for reference only, and should not be used as special data for outgoing quality control.

All technical information and advice given here is based on Zzpip’s previous experiences and test results. Zzpip gives this information to the best of its knowledge, but assumes no legal responsibility. Customers are asked to check the suitability and usability in the specific application, since the performance of the product can only be judged when all necessary operating data are available.

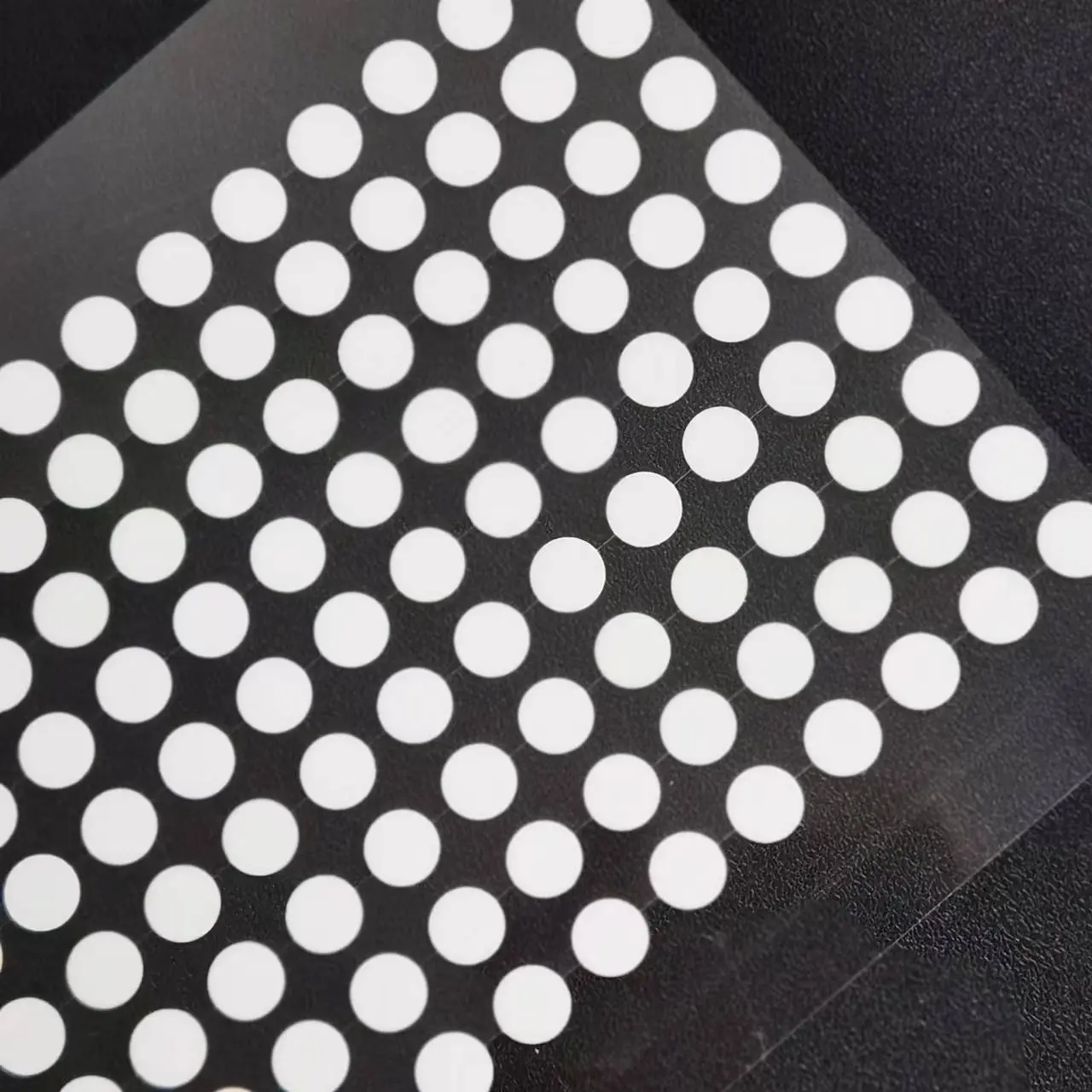

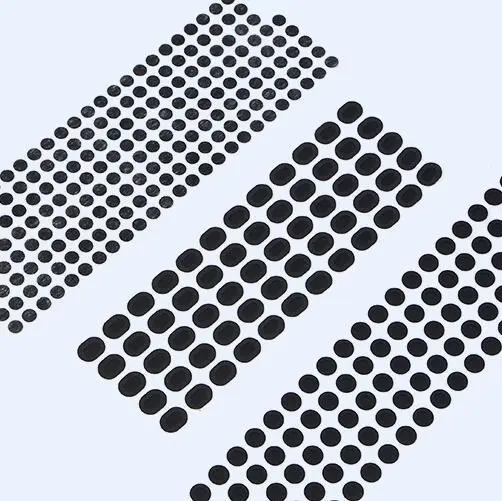

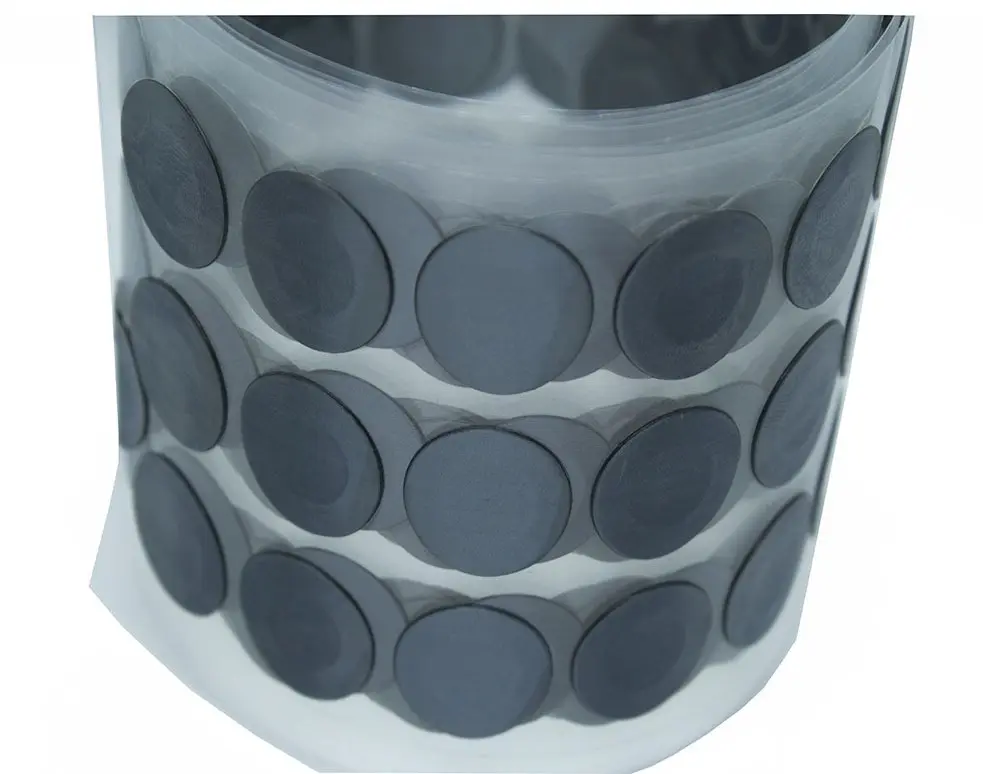

PRODUCT NAME Acoustics Vent Membrane
PRODUCT MODEL ZZPIP-100G20-A
PRODUCT DESCRIPTION e-PTFE Hydrophobic Acoustics transmission membrane
APPLICATION FEILD Acoustics & Electronics
APPLICATION PRODUCTS Smart Phone, Earphone, Tablet PC, Microphone

product details

Membrane Properties:

PHYSICAL PROPERTIES	REFERED TEST STANDARD	UNIT	TYPICAL DATA
Membrane Color	/	/	Grey
Membrane Construction	/	/	ePTFE
Membrane Surface Property	/	/	Hydrophobic
Thickness	ISO 534	mm	0.01±0.005
Air Permeability	ASTM D737 (测试面积：1 cm²)	ml/min/cm2@7KPa	>5000
Water Entry Pressure	ASTM D751 (测试面积：1 cm²)	KPa for 30 sec	>50 KPa
Transmission Loss (@1kHz, I.D.= 2.0mm)	Internal Control	dB	< 1 dB
IP Rating (Test I.D.= 2.0mm)	IEC 60529	/	IP67/IP68
ISO Rating (Test I.D.= 2.0mm)	ISO 22810	/	NA
Operation Temperature	IEC 60068-2-14	℃	-40℃～260℃
ROHS	IEC 62321	/	Meet ROHS Requirements
PFOA & PFOS	US EPA 3550C & US EPA 8321B	/	PFOA & PFOS Free

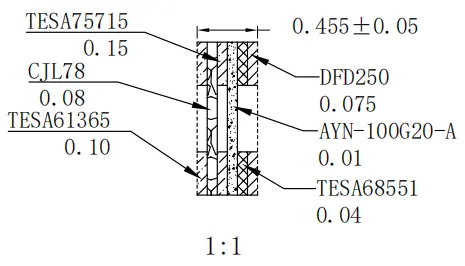

Product Structure

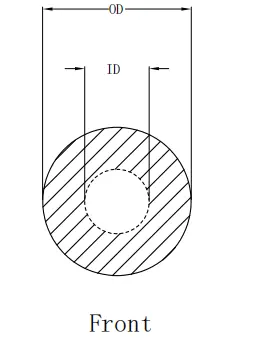

Product Model & Dimension

产品型号	外径（OD）	内径（ID）	透气量ml/min@7Kpa	声损@1KHz
100G20-A2040	4.0	2.0	>157	≤1dB
100G20-A2450	5.0	2.4	>226	≤1dB
100G20-A3347	4.7	3.3	>427	≤1dB
100G20-A3060	6.0	3.0	>353	≤1dB
100G20-A3376	7.6	3.3	>427	≤1dB
100G20-A4080	8.0	4.0	>628	≤1dB
100G20-A5094	9.4	5.0	>981	≤1dB

（Note: Dimensions can be cusomized. ）

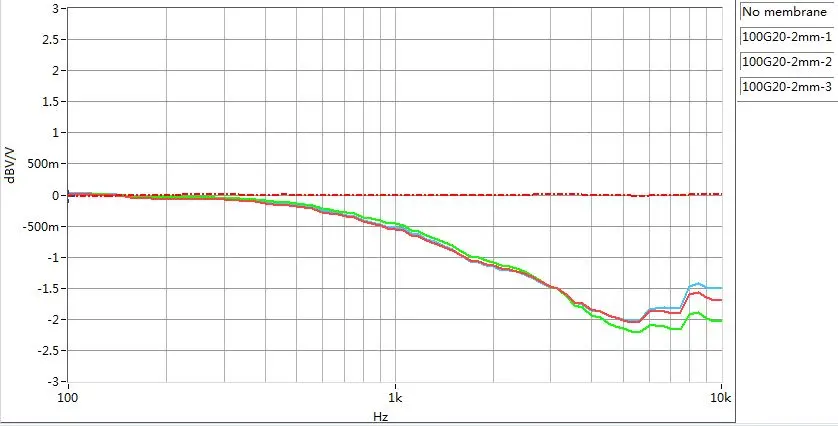

Transmission Loss Curve：

Transmission Loss of AYN-100G20-A acoustics membrane < 1dB @ 1KHz, and < 2.5 dB in the whole frequency range. AYN-100G20-A

NOTE:

(1)Acoustic Response and IP Grade test part dimension: I.D. 2.0 mm / O.D. 6.0 mm.
(2)The results are tested using a typical digital output MEMS microphone system and self-designed test device in ZZPIP laboratory with representative sample size. The design of the device will affect final performance.

Application：

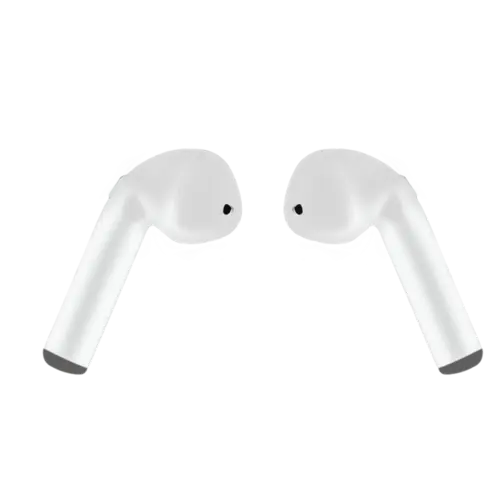

This series of membranes can be used in waterproof and acoustics membrane for portable and wearable electronic devices, such as Smart Phone, Earphone, Smart Watch, and Bluetooth Speaker, Alertor etc.

The membrane could provide the device with immersed waterproof protection and minimal sound transmission loss, keeping the device with the excellent acoustics transmission performance.

Shelf Life：

Shelf life is 5 years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80° F (27° C) and 60% RH.

Note：

All data above are typical data for the membrane raw material, for reference only, and should not be used as special data for outgoing quality control.

All technical information and advice given here is based on Zzpip’s previous experiences and test results. Zzpip gives this information to the best of its knowledge, but assumes no legal responsibility. Customers are asked to check the suitability and usability in the specific application, since the performance of the product can only be judged when all necessary operating data are available.
